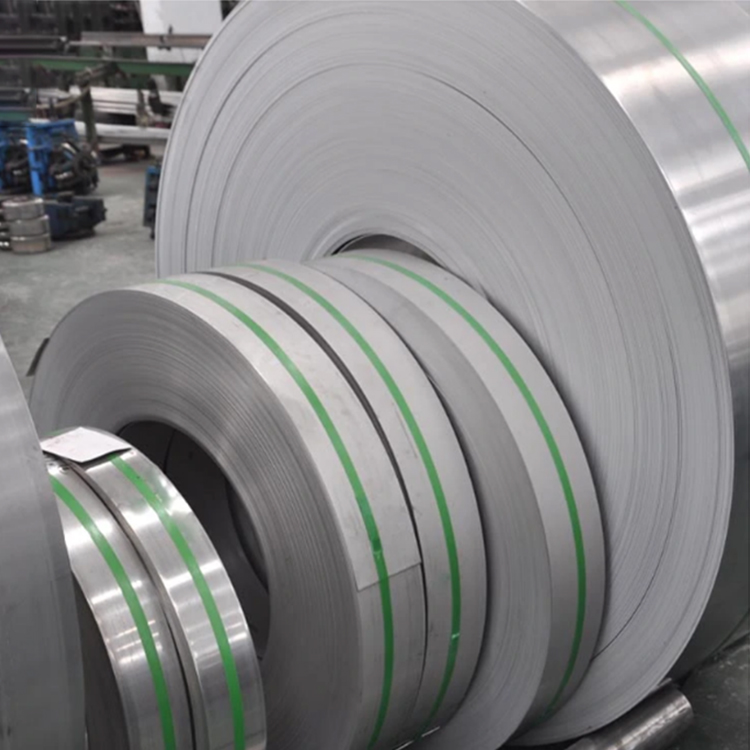

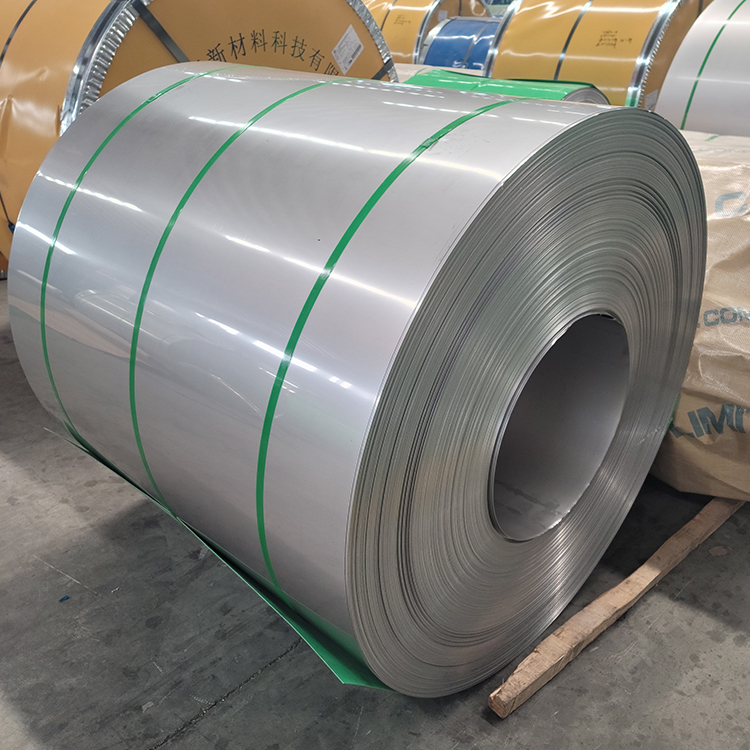

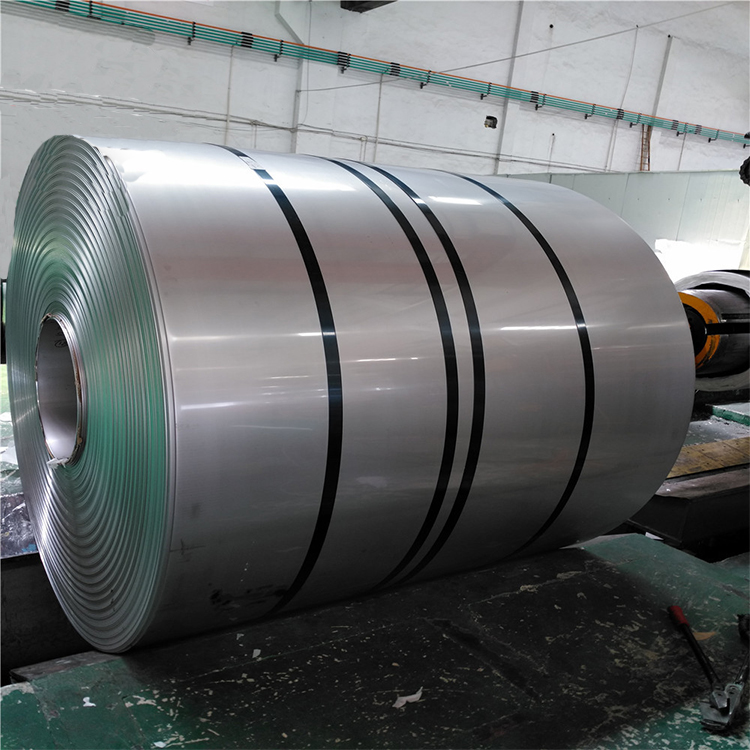

316L Stainless Steel Coils

Name: 316L Stainless Steel Coils
SKU: 0

Stainless steel is a steel alloy with increased corrosion resistance compared to carbon/alloy steel.
Common alloying ingredients include chromium (usually at least 11%), nickel, or molybdenum. Alloy content often is on the order of 15-30%.
Common applications for stainless steel include food handling/processing, medical instruments, hardware, appliances, and structural/architectural uses.

+86 180 6807 6594

sales07@puhaosteel.com

134

Company established

36000

m²

Factory Base

variety

Exporting Countries

PRODUCT DESCRIPTION

Stainless steel is a steel alloy with increased corrosion resistance compared to carbon/alloy steel.

Common alloying ingredients include chromium (usually at least 11%), nickel, or molybdenum. Alloy content often is on the order of 15-30%.

Common applications for stainless steel include food handling/processing, medical instruments, hardware, appliances, and structural/architectural uses.

With every batch, we guarantee the following advantages:

Low Carbon Content

Our 304 and 316 dull polished stainless sheet offerings have low carbon content. Therefore, they’re hugely useful in the construction and welding industries. While welding it, you’ll have zero carbide precipitation.

Rust Resistance

Our polished stainless steel sheet is hugely resistant to rust. For the food and manufacturing industries, rust resistance is a great advance. Our 304 stainless steel sheet won’t need to undergo annealing after welding it.

While they may not boast the same resistance to rust, we also stock copper sheets and brass sheets for varied needs.

Machinable

Thanks to the superior formability of our stainless steel sheet, users can stamp and deep draw it for varied applications.

Stainless Steel Description

Commodity	Stainless Steel Coil/stainless steel strip
Material Grade	201,304,310S,310,309,309S,316,316L,316Ti,317,317L,321, 321H,347f347H,304f304L,302,301,201,202,403,405,409,409L,410,410S,420,430,631,904L,etc
Width	cold rolled:50-1500mm hot rolled:20-2000mm or as your requirement
Thickness	cold rolled:0.1mm-3.0mm hot rolled:3.0mm-16.0mm
Length	Coil or as customer's request
Surface	No.1,2B,BA,etc
Normal Size	1000coil mm 1219coil mm 1500*coil mm
Standards	AISI ASTM JIS SUS and GB
Certifications	ISO 9001,SGS,BV
Applications	Kitchenware, utensils, tableware, household appliances, construction decoration and daily products
Packing	Seaworthy wooden pallet or according to client's requirement

Stainless Steel Material Properties

Type No.	Tensile Strength, ksi	Yield Strength, ksi	Elongation in 2 inches, %	Reduction of Area, %	Brinell Hardness
301	110	40	60	70	165
302	90	40	55	70	150
303	90	35	50	55	160
304	85	35	55	70	150
304L	80	30	55	70	140
316	85	35	60	70	150
316L	78	30	55	65	145
321	85	35	55	65	150
410	75	40	35	70	155
416	75	40	30	65	155
420	95	50	25	-	241
430F	80	45	25	50	165
15-5	160	145	15	-	330

Chemical Properties

UNS	ASTM	EN	JIS	C%	Mn%	P%	S%	Si%	Cr%	Ni%	Mo%
S20100	201	1.4372	SUS201	≤0.15	5.5-7.5	≤0.06	≤0.03	≤1.00	16.0-18.0	3.5-5.5	-
S20200	202	1.4373	SUS202	≤0.15	7.5-10.0	≤0.06	≤0.03	≤1.00	17.0-19.0	4.0-6.0	-
S30100	301	1.4319	SUS301	≤0.15	≤2.00	≤0.045	≤0.03	≤1.00	16.0-18.0	6.0-8.0	-
S30400	304	1.4301	SUS304	≤0.08	≤2.00	≤0.045	≤0.03	≤0.75	18.0-20.0	8.0-10.5	-
S30403	304L	1.4306	SUS304L	≤0.03	≤2.00	≤0.045	≤0.03	≤0.75	18.0-20.0	8.0-12.0	-
S30908	309S	1.4833	SUS309S	≤0.08	≤2.00	≤0.045	≤0.03	≤0.75	22.0-24.0	12.0-15.0	-
S31008	310S	1.4845	SUS310S	≤0.08	≤2.00	≤0.045	≤0.03	≤1.50	24.0-26.0	19.0-22.0	-
S31600	316	1.4401	SUS316	≤0.08	≤2.00	≤0.045	≤0.03	≤0.75	16.0-18.0	10.0-14.0	2.0-3.0
S31603	316L	1.4404	SUS316L	≤0.03	≤2.00	≤0.045	≤0.03	≤0.75	16.0-18.0	10.0-14.0	2.0-3.0
S31703	317L	1.4438	SUS317L	≤0.03	≤2.00	≤0.045	≤0.03	≤0.75	18.0-20.0	11.0-15.0	3.0-4.0
S32100	321	1.4541	SUS321	≤0.08	≤2.00	≤0.045	≤0.03	≤0.75	17.0-19.0	9.0-12.0	-
S34700	347	1.455	SUS347	≤0.08	≤2.00	≤0.045	≤0.03	≤0.75	17.0-19.0	9.0-13.0	-
S40500	405	1.4002	SUS405	≤0.08	≤1.00	≤0.04	≤0.03	≤1.00	11.5-14.5	≤0.60	-
S40900	409	1.4512	SUS409	≤0.08	≤1.00	≤0.045	≤0.03	≤1.00	10.5-11.75	≤0.50	-
S43000	430	1.4016	SUS430	≤0.12	≤1.00	≤0.040	≤0.03	≤0.75	16.0-18.0	≤0.60	-
S43400	434	1.4113	SUS434	≤0.12	≤1.00	≤0.040	≤0.03	≤1.00	16.0-18.0	-	-
S44400	444	1.4521	SUS444L	≤0.025	≤1.00	≤0.045	≤0.03	≤1.00	17.5-19.5	≤1.00	-
S40300	403	-	SUS403	≤0.15	5.5-7.5	≤0.04	≤0.03	≤0.50	11.5-13.0	≤0.60	-
S410000	410	1.40006	SUS410	≤0.15	≤1.00	≤0.035	≤0.03	≤1.00	11.5-13.5	≤0.60	≤1.00
S42000	420	1.4021	SUS420J1	0.16~0.25	≤1.00	≤0.04	≤0.03	≤1.00	12.0-14.0	≤0.75	≤1.00
S440A	440A	1.4028	SUS440A	0.60~0.75	≤1.00	≤0.04	≤0.03	≤1.00	16.0-18.0	-	≤0.75
S32750	SAD2507	1.441		≤0.03	≤1.2	≤0.035	≤0.02	≤0.80	24.0-26.0	6.0-8.0	3.0-5.0
S31803	SAF2205	1.4462		≤0.03	≤2.0	≤0.03	≤0.02	≤1.00	21.0-23.0	4.0-6.5	2.5-3.5
N08904	904L	1.4539		≤0.0.3	≤2.0	≤0.035	≤0.03	≤1.00	18.0-20.0	23.0-25.0	3.0-4.0

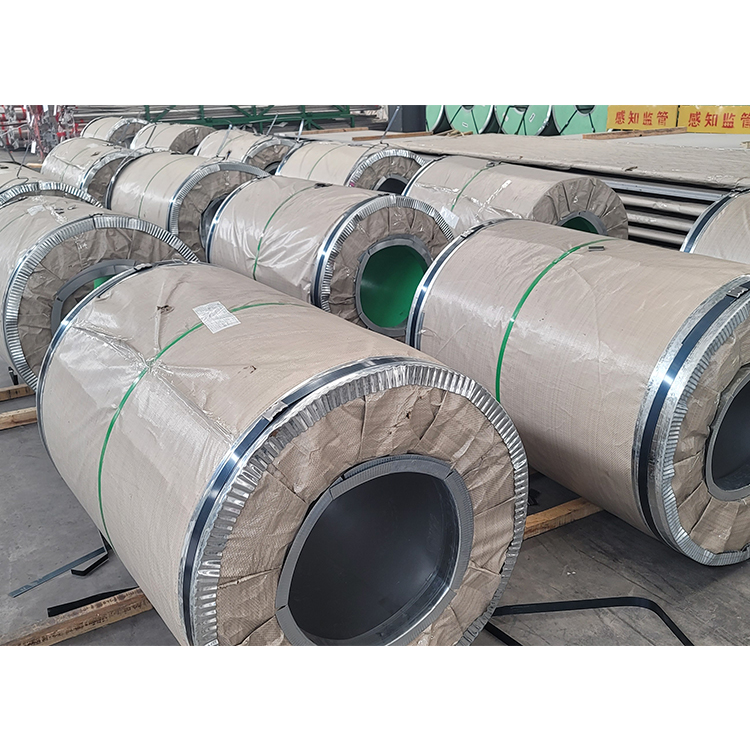

packaging and shipping

Adopting a professional industrial packaging solution that is moisture-proof and scratch resistant, each batch of steel is tied and fixed with customized wooden frames/steel strips, combined with anti rust coatings and cushioning pads to ensure zero damage during transportation. Clear product model, batch number, and storage identification on the outer packaging, supporting customized enterprise logos and information labels. Environmentally friendly and recyclable packaging materials practice green concepts, reducing transportation and disassembly costs.
